MODFOX M5
– SWOCS – RTR

Integrated Control. Streamlined
Deployment.

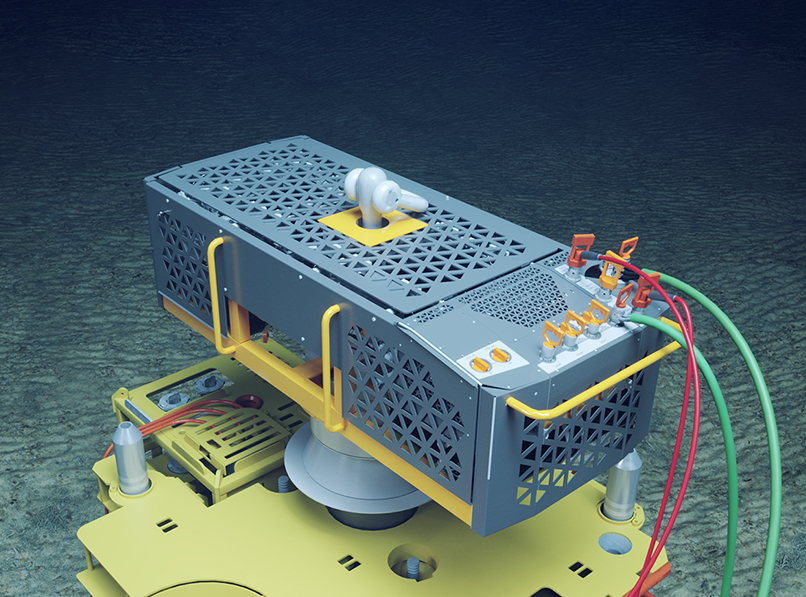

MODFOX M5 combines two field-proven components into one powerful solution: the standard Intervention Control System (MCP) and the Tree Running Tool (CPI). This integrated configuration can be pre-configured onshore or offshore, reducing operational risk, improving safety, and streamlining subsea workflows.

With a proven track record across both Norwegian and international continental shelves, MODFOX M5 is engineered for efficiency, reliability, and sustainability.

The MODFOX M5 combines two field-proven components into one powerful solution: the standard Intervention Control System (MCP) and the Tree Running Tool (CPI). This integrated configuration can be pre-configured onshore or offshore, reducing risk, streamlining operations, and enhancing safety.

Performance That Delivers

With a strong operational track record across the Norwegian and international continental shelves, MODFOX M5 is optimized for efficiency, providing:

Reduced HSE exposure
Significant time and cost savings
Lower CO₂ emissions

With a strong operational track record across the Norwegian and international continental shelves, MODFOX M5 is optimized for efficiency, providing:

Power & Operation Options

The system offers two power supply configurations:

Simplified Umbilical Termination Head (UTH): Uses an open-water umbilical to power two electric pumps (low and high pressure).
WROV Hydraulic Power Unit (HPU): Operates via separate electric and hydraulic flying leads.

In the event of power loss, the WROV flying leads can seamlessly override the open-water umbilical, ensuring uninterrupted operations.

The Technical Data

Qualified operating depth 3000m
Control Fluid type Oceanic HW443, Transaqua and similar
Separate LP Pump and HP Pump circuits
Control Pressure LP 345 bar / 5000 psi
Control Pressure HP 690 bar / 10000 psi
Control Pressure UHP 1378 bar / 20000 psi
Pressure and return filters
Internal fluid reservoirs
Flowmeter on pressure and return functions
Dual pressure transducers for redundancy of pumps and valve packs
Subsea Gateway Control System
Integration of third part XT SCM Control Canisters
Topside Control System (HMI)

Why MODFOX M5?

Combines the Master Control Package (MCP) and Tree Running Tool (CPI) into one streamlined solution
Can be pre-configured onshore or offshore, reducing setup time and operational risk
Proven performance across the Norwegian and international continental shelves
Provides flexible power options via open-water umbilical or WROV Hydraulic Power Unit (HPU)
Increases safety, cuts costs, and lowers CO₂ emissions
Built-in override capability ensures operational continuity in the event of power loss
