MODFOX M2
– Standalone System
Independence with
Enhanced Capability

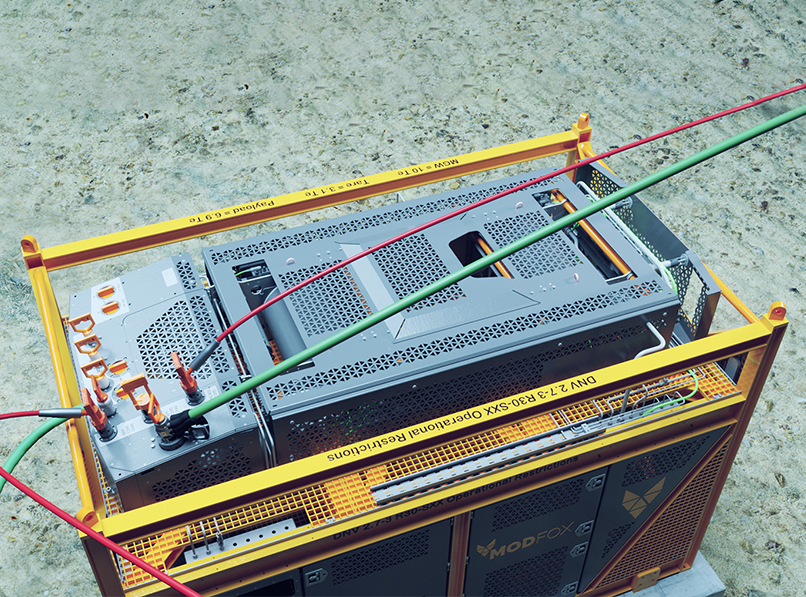

MODFOX M2 is a standalone subsea control solution, developed to enhance capacity within the MODFOX series.
Designed for flexibility and operational independence, it offers a robust alternative for projects with limited ROV availability.
This configuration is ideal when only one ROV is in operation, freeing up critical capacity while ensuring reliable system control and safe subsea handling.
Enhanced System Capacity
The MODFOX M2 – Standalone setup offers increased reservoir, pump, and auxiliary system options, such as additional accumulators and chemical injection systems, tailored to project demands.
The system is powered by a Work-Class ROV Hydraulic Power Unit (WROV HPU) using separate electric and hydraulic flying leads, ensuring reliable performance.
Subsea Utility Package
(SUP)
The Subsea Utility Package (SUP) provides a stable seabed platform, enabling the Master Control Package (MCP) to be placed near the Xmas Tree, ensuring optimal elevation for operation. This setup enables safe and efficient connection and disconnection using wet-mate connectors
Reliable. Modular. Ready to Deploy
MODFOX M2 supports safer, faster, and more adaptable offshore operations—without the need for additional ROV intervention or complex mobilization.
The Technical Data
- Qualified operating depth 3000m
- Control Fluid type Oceanic HW443, Transaqua and similar
- Separate LP Pump and HP Pump circuits
- Control Pressure LP 345 bar / 5000 psi
- Control Pressure HP 690 bar / 10000 psi
- Control Pressure UHP 1378 bar / 20000 psi
- Pressure and return filters
- Large internal fluid reservoirs
- Flowmeter on pressure and return functions
- Dual pressure transducers for redundancy of pumps and valve packs
- Subsea Gateway Control System
- Integration of third part XT SCM Control Canisters
- Topside Control System (HMI)
- ROV Hydraulic Flying Leads – Valve Stab connectors
- ROV Electric Flying Leads – Wet-mate connectors
Why MODFOX M2?
- Ideal when only one ROV is available
- Enhanced system capacity with customizable reservoirs, pumps, and injection systems
- Subsea Utility Package (SUP) ensures optimal MCP positioning
- Efficient wet-mate connector handling for safe disconnection
- Reduced surface footprint and lower mobilization costs
